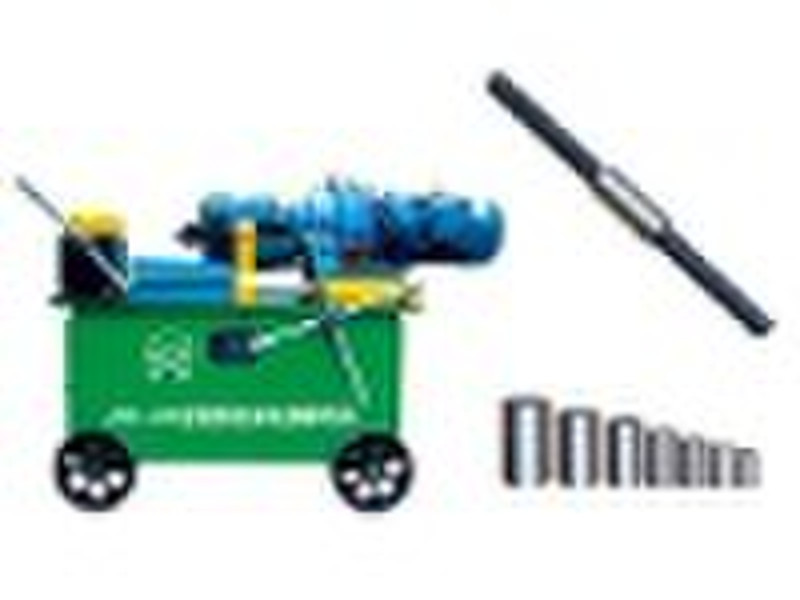

BAR ROLLING MACHINE (PARALLEL)

BAR ROLLING MACHINESPEICICATION: RIBBED REBARS WITH DIA FROM 14 TO 40MM . PRINCIPLE: PEELING RIB ,THEN ROLLING PARALLEL THREAD. FEATURE: EASY TO OPERATE, ENERGY-SAVING, LABOR SAVING AND COST-SAVING.MODEL TECHNICAL DATA G/W POWER VOLTAGE DIMENSION ROTATE SPEED DIA THREAD LENGTH JBG-40K 500KG 4KW 3-380V 50HZ 125*75*105 60R/MIN 14-40 MM 65 MM MAX JBG-40D 500KG 4KW 3-380V 50HZ 125*75*105 60R/MIN 14-40 MM 120MM MAX JBG-40B 500KG 4KW 3-380V 50HZ 125*75*105 60R/MIN 16-40 MM 65 MM MAX
